| TOP OF THIS PAGE ▲ |
|

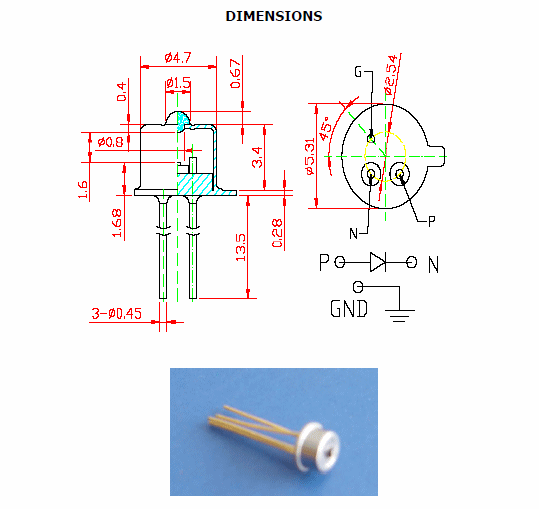

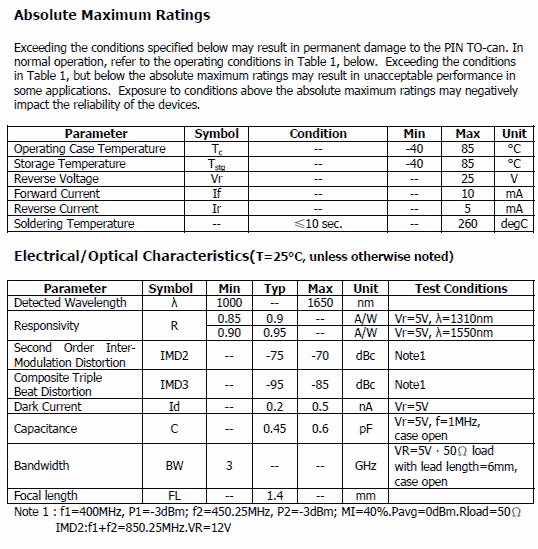

Analog PIN TO-can |
 |
|
| TOP OF THIS PAGE ▲ |
|

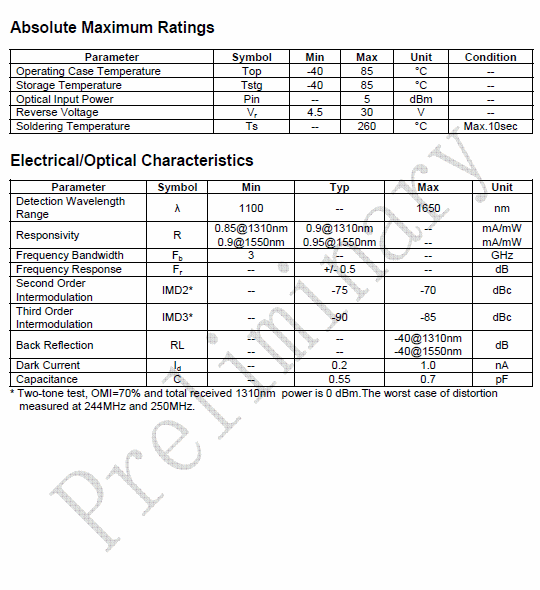

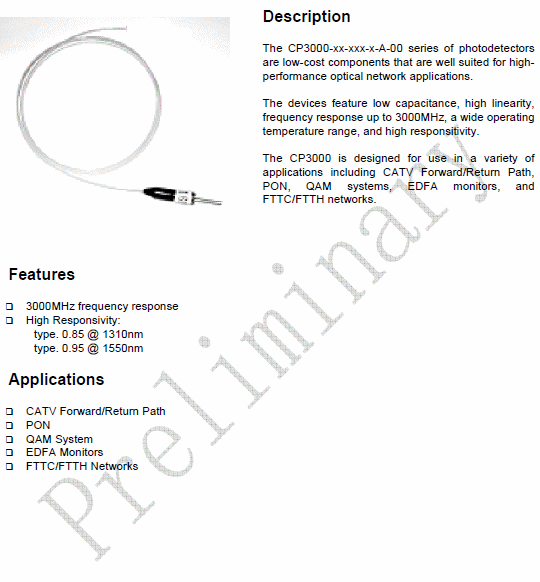

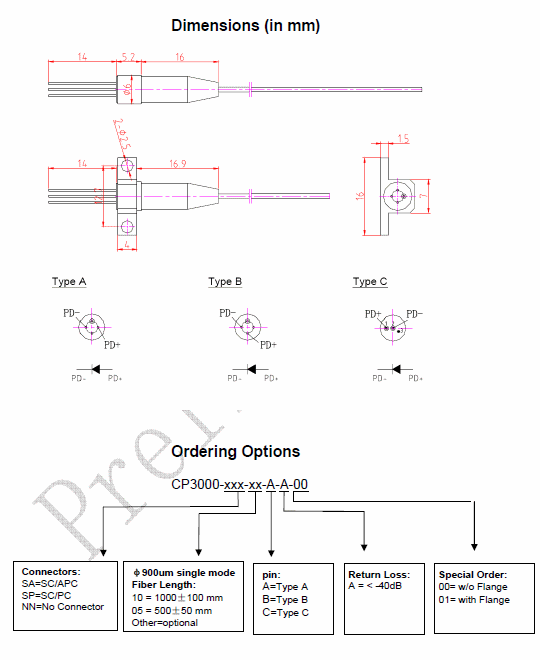

3GHz coaxial PD |
 |
|
| TOP OF THIS PAGE ▲ |
|
Cable TV Applications |
|
Transmitter Lasers for CATV Forward-Path Applications |
|
1310-nm DFB Coaxial Forward Path OSDFB-1310-C5-x-A3(x)-xx-A-x-AI |
|
1310-nm DFB Butterfly Forward Path OSDFB-1310-BF-xx-Ax-xx-AI |
|
1550-nm DFB Butterfly Forward Path OSDFB-1550-BF-xx-A3-xx-AI |
|
1310-nm DFB Butterfly with Predistorion Board OSDFB-1310-P2-xx-A3-xx-AI |
|
1270-1350-nm DFB Butterfly with Predistorion Board OSDFB-1310-P3-xx-A3-xx-AI |
|
|
Transmitter Lasers for CATV Return-Path Applications |
|
1310-nm DFB Coaxial Return Path OSDFB-1310-C5-x-A-xx-x-x-AI |
|
1310-nm FP Coaxial Return Path OSFP-1310-C5-2-A-xx-A-x-x-AI |
|
1550-nm DFB Coaxial Return Path OSDFB-1550-C5-2-A-xx-x-x-AI |
|
1270-1610-nm CWDM DFB Coaxial Return Path OSDFB-1xxx-C5-2-A-xx-x-x-xx-AI |
|
1470-1610-nm Band CWDM DFB Butterfly Return Path OSDFB-1xxx-BF-xx-A1-xx-AI |
|
| TOP OF THIS PAGE ▲ |
|
FTTx Applications |
|
BiDirectional Modules for FTTx Applications |
|
Bidirectional Module for PON ONU OSDFB-1310-DP3-1-1.3-xx-A-C-AI |
|
Bidirectional Module for PON OLT, APD-TIA Receiver OSDFB-1490-DP1-2-2.5-xx-A-C-AI |
|
|
Triplexer Modules for FTTx Applications |
|
Triplexer Module for PON ONU OSDFB-1310-TP2-1-1.3-xx-A-C-AI |
|
|
Video Receiver Modules for PON/FTTx Applications |
|
Video Receiver Modules (V-ONU) for PON/FTTx OSVONU2150-08-AI |
|
|
PON/FTTH Transceivers |
|
Bidirectional WDM Links |
|
GPON (ITU-G.984.2) OLT and ONT |
|
EPON (IEEE 802.3ah) P2P and P2MP ONT |
|
FTTH ONT |
|
FTTx ONU/FTTP MDU |
|
RoHS compliant |
GPON 2x2 (in.) Module
|
Max Data Rate (bps) |
Wavelength (nm) |
Application |
Reach (km) |
DDM1 |
Part Number2 |
|
Triplexer 23pin/SMB, SC-APC Pigtail |
|
1.25/2.5G+rf |
1310Tx/1490Rx/1550Rx |
GPON ONT (ITU-T G.984.2) |
20 |
 |
OSATG7-CGTx-CDGA-AI |
|
Diplexer 20pin/SMB, SC-PC Pigtail |
|
1.25/2.5G |
1310Tx/1490Rx |
GPON ONT (ITU-T G.984.2) |
20 |
|
OSADG7-CGBA-CEGA-AI |
|
1.DDM per SFF-8472
2.'x' indicates operating temperature option (F=-20ﾟ to 80ﾟC, G for I-Temp., M = -5ﾟ to 70ﾟC).
All options may not be available for all modules |
|
|
|
WDM BiDi SFP Transceivers |
|
GPON OLT |
|
EPON P2P |
|
SC or LC simplex |
|
|
Small Form Factor (SFF) Modules |
|
SFF MSA compatible pin-thru-hole modules |
|
Bidirectional WDM for SMF (ITU-T G.652) |
|
RoHS complian |
|
3.3V |
|
| TOP OF THIS PAGE ▲ |
|
Wireless Applications |
|
Transmitter Lasers for Wireless Repeater Applications |
|
1310-nm DFB Coaxial for CDMA OSDFB-1310-C5-2-A2-xx-x-x-AI |
|
1310-nm FP Coaxial for CDMA OSFP-1310-C5-2-A2-xx-A-x-x-AI |
|
1310-nm DFB Coaxial for WCDMA/PCS OSDFB-1310-C5-2-A4-xx-x-x-AI |
|
1310-nm FP Coaxial for WCDMA/PCS OSFP-1310-C5-2-A4-xx-A-x-x-AI |
|
1550-nm DFB Coaxial for CDMA OSDFB-1550-C5-2-A2-xx-x-x-AI |
|
1550-nm FP Coaxial for CDMA OSFP-1550-C5-2-A2-xx-x-x-x-AI |
|
1550-nm DFB Coaxial for WCDMA/PCS OSDFB-1550-C5-x-A4-xx-x-x-AI |
|
1550-nm FP Coaxial for WCDMA/PCS OSFP-1550-C5-2-A4-xx-x-x-x-AI |
|
1550-nm Band CWDM DFB Butterfly for WCDMA/PCS OSDFB-1xxx-BF-xx-A2-xx-AI |
|
1310-nm DFB Butterfly for WCDMA/PCS OSDFB-1310-BF-xx-A2-xx-AI |
