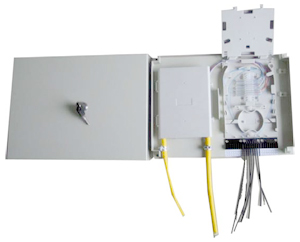

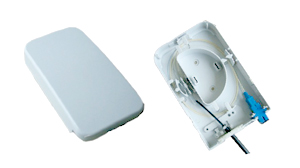

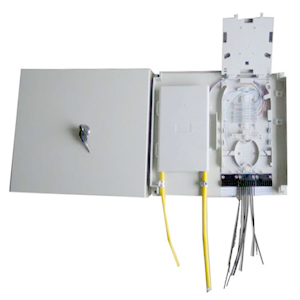

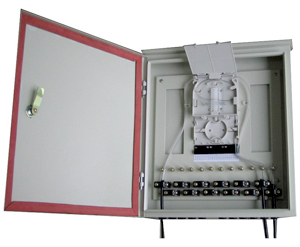

Top > 製品情報 > FTTH products Quick Assembly Connector PLC Splitter Module FTTH Customer Terminal Box Other Passive Product / Other Active Product Quick Assembly Connector Splitter Distribution Box FTTH Customer Terminal Box Splitting Unit FTTH Floor Terminal Box PLC Splitter Module Quick Assembly Connector Components Assemblying Assemblied 　Features 　 　Applications 　 Factory-installed fiber stub No epoxy or polishing required Allows up to three re-termination result Quick and easy fiber termination in the field Eliminates cable excess length and pigtail splice storage Cost effective Patch panels Distribution frames Maintenance or emergency restoration of fiber networks FTTH Outlets Connection at the desk for LAN environments 製品詳細は、お手数ですがお問い合わせフォームまたはsales@ostenp.comにお願いします。 FTTH Customer Terminal Box OSTB Series OSTB104 OSTB108 OSTB116 OSTB-CA104/108 　Description 　 　Features 　 Used in the end termination of residential buildings and villas,to fix and splice with pigtails. small size,light weight,pleasing in apperance wall mounted with mechanical protection function max fiber capacity 4-16 fibers,4-16 adapter output available for FC,SC,ST,LC adatpers hinge and convenient press-pull button lock design OSTB0102 OSTB0102 Small size, light weight, pleasing in appearance Can be installed on the wall with mechanical protective function May adapt variety of optical connection styles. Set strengthen device and fiber optic cable mounting seat SC 2 cores，LC 4 cores Suitable for indoor wall mount OSTB104B OSTB104B Environmental Temperature：−25℃〜40℃; Max capacity: 4 fibers Self-clip design,easy to operate Suitable for SC,FC adapters OSIC08 Multifunctional Fiber Optical Terminal Box Introduction 　 Product principium chart OSIC08 multifunctional fiber optical terminal box is a new product we designed for FTTH engineering. The box is light and facility, specially applicable to protecting connect for cable and pigtail. Socket Panel Socket Panel Used in FTTH indoor application,home or work area Provide users with optical access or data access Suitable for 2 pcs SC adapters May store surplus fiber inside,easy for operation 製品詳細は、お手数ですがお問い合わせフォームまたはsales@ostenp.comにお願いします。 FTTH Floor Terminal Box OSTB-0124 OSTB-0124 　Description 　 　Features 　 Suitable for FTTX project of high rise building,achieve through connection and branch connection between distribution cable and customer cable in corridor. Suitable for wall mounted in siloof building corridor Small size,light weight,high capacity,easy to splice and installation Support through connection style Preinstalled one pc of 24 fibers splice tray exclusively for FTTH drop cable Suitable for connection one distribution cable with 24 pcs customer FTTH drop cables Mechanical splice or fusion splice OSTB-0224 OSTB-0224 　Description 　 　Features 　 Suitable for FTTH project of multi-storey buildings, achieving branch connection within distribution and customer cables in corridor of building. Suitable for wall mounted in siloof building corridor Small size,light weight,high capacity,easy to splice and installation Support through connection style Preinstalled one pc of 24 fibers splice tray exclusively for FTTH drop cable Suitable for connection one distribution cable with 24 pcs customer FTTH drop cables Mechanical splice or fusion splice OSTB-0324 OSTB-0324 　Features 　 -Suitable for distribution facilities of FTTX home cable of an independent villa projects -It can be used as a general outdoor distribution box independently -Suitable for loose tube,tight tube,duct cable,etc. -Suitable for through connection or branch connection -Preloaded with fixation brackets in the box,support in or out for 14 cables OSTB-0272 OSTB-0272 　Features 　 -Wall mounted in the building -Branch splice connection -Suitable for connecting one distribution cable with 72 pcs of customer cables -Open base style 製品詳細は、お手数ですがお問い合わせフォームまたはsales@ostenp.comにお願いします。 Splitter Distribution Box OSTDB-0208 OSTDB-0216 　Introduction 　 Suitable for corridor,basement,room and building's outer walls application With the function of mechanical splice,fusion splice,light splitting,wiring distributions 　Features 　 　Applications 　 Industry Standard User Interface, be made of high impact plastic. Can accommodate 1x8 & 1X16 PLC splitter. Anti-UV, Ultra violet resistant and rainfall resistant. Up to 16 FTTH drops. Wall and pole mountable. 2 inlet ports, 16 outlet ports. widely used in FTTH access network. Telecommunication Networks CATV Networks Data communications Networks Local Area Networks OSTDB-0164 OSTDB-0164 　Introduction 　 　Features 　 Applicable in FTTH project Suitable for corridor,basement,room and building's outer walls application With the function of mechanical splice,fusion splice,light splitting,wiring distributions High quality cold rolled steel body,electrostatic spraying with water proof powder High quality water proof lock,wall mounted cabinet Operating temperature:-30°C~+55°C,storage temperature: -40°C~+60°C With access to 2 pcs of 12 cores fiber optic cables and up to 64 pcs of customer cables Suitable for multi fiber optic cable access as well Suitable for 72 pcs of SC,FC,ST adapters,easy to installation adn maintenance Support branch connection styles 製品詳細は、お手数ですがお問い合わせフォームまたはsales@ostenp.comにお願いします。 Splitting Unit OSTGB-E-36 　Description 　 　Features 　 The product is used in small and medium-capacity optical splitting point in FTTH network, achieving wiring and distribution function at the same time. It's applicable in network cabinets and multi-purpose cabinets. It can be loaded with 1/2*32 optical splitters and 36 cores distribution branches. Achieve cross-connection and storage management in unit Complete functions,easy to operate Enough operation space,easy for use and maintenance 19'' standard installation,4U height Sliding splice tray 製品詳細は、お手数ですがお問い合わせフォームまたはsales@ostenp.comにお願いします。 PLC Splitter Module Module mounted type OSTSM/ODF108 OSTSM/ODF116 OSTSM/ODF132 　Introduction 　 　Features 　 Used for splitter installation,safe and easy Mainly used in cross-connect cabinet,ODF,ODF unit Compatible with connection modules Modular structure,easy for operation,construction and maintenance Convenient to carry out splitting on modules by existing ODFequipment and reduce network construction costs. Secure protective device for radius curvature of fibers Wall Type 　Introduction 　 　Features 　 Suitable for small capacity optical splitting and distribution in FTTH network Mainly used in network cabinet or comprehensive cabinet Wall mounted,widely used Easy for operation or maintenance Rack Mounted Type OSTSM/R-116 Dimension: H44.5xW482x300mm Rack type OSTSM/RS-16/116 Dimension: H222.5xW482xD250 Slot type 　Description 　 　Features 　 Suitable for small capacity optical splitting in FTTH network,achieve optical splitting and distribution fuction Mainly used in network cabinet or comprehensive cabinet Standard 19'' rack mounted,widely used Easy for operation or maintenance 製品詳細は、お手数ですがお問い合わせフォームまたはsales@ostenp.comにお願いします。
