光サブアセンブリモジュール & LED, LD, PD チップ
TOSA / ROSA / BOSA & LED, LD, PD chip
TOSA/ROSA of Receptacle Housing
Triplexer
APD
PD-Chip
| Part No. | Source | Wavelength | Data Rate | Output Power | Package series | Connector | Isolation | Fiber Type |
| OSTOS001 | LED | 850nm | 155M/230Mbps | 10~700uW | Receptacle | LC | | None |
| OSTOS002 | LED | 1310nm | 155M | 30~50uW | Receptacle | LC/SC | | None |
| OSTOS003 | DFB | 1550nm | 2.5G | 2-3mw | Receptacle F | SC | Single Stage | None |
| OSTOS005 | DFB | 1310nm | 1.25G | 0.3-1mw | Receptacle A | FC-1 | None | None |
| OSTOS006 | FP | 1550nm | 1.25G | 1-2mw | Receptacle B | FC-2 | Single Stage | None |
| OSTOS007 | FP | 1310nm | 1.25G | 0.3-1mw | Receptacle E | ST-1 | None | None |
| OSTOS008 | DFB | 1550nm | 2.5G | 3-4mw | D | FC/APC | Single Stage | SM |
| OSTOS009 | DFB | 1310nm | 1.25G | 2-3mw | B | SC/APC | Single Stage | SM |
| OSTOS010 | FP | 1310nm | 1.25G | 1-2mw | A | FC/APC | Single Stage | SM |
| OSTOS011 | FP | 1550nm | 1.25G | 1-2mw | A | FC/APC | Single Stage | SM |
| OSTOS012 | CWDM DFB | 1290nm | 1.25G | 2-3mw | Pigtail B | FC/APC | Single Stage | SM |
| OSTOS013 | CWDM DFB | 1470nm | 1.25G | 2-3mw | Pigtail B | SC/APC | Dual Stage | SM |
| OSTOS014 | CWDM DFB | 1590nm | 1.25G | 2-3mw | Pigtail B | SC/APC | Single Stage | SM |
| OSTOS015 | CWDM DFB | 1610nm | 1.25G | 2-3mw | Pigtail B | SC/APC | Dual Stage | SM |
| OSTOS016 | FP | 1550nm | 2.5G | 0.3-0.5mw | Receptacle | LC-TOSA | None | None |
| OSTOS017 | DFB | 1310nm | 1.25G | 0.3-0.5mw | Receptacle | LC-TOSA | Single Stage | None |
| OSTOS018 | DFB | 1550nm | 2.5G | 1-1.59mw | Receptacle | LC-TOSA | Single Stage | None |
| OSTOS019 | FP | 1310nm | 2.5G | 0.15-0.3mW | Receptacle | LC-TOSA | None | None |
| OSTOS020 | DFB | 1610nm CWDM | 2.5G | 1-1.59mw | Receptacle | LC-TOSA | Single Stage | None |
| OSTOS021 | DFB | 1310nm | 10G | 0.2-1mW | Receptacle | LC-TOSA | Single Stage | None |
| OSTOS022 | DFB | 1310nm | 1.25G | 0.5-1mW | Receptacle | SC-TOSA6 | None | None |
| OSTOS023 | FP | 1310nm | 1GHz | 2-3mW | Pigtail A | SC/APC | Single Stage | SM |
| OSTOS025 | DFB | 1550nm | 1GHz | 1-2mW | Pigtail A | SC/APC | Single Stage | SM |
| OSTOS026 | CWDM DFB | 1330nm | 2GHz | 2-3mW | Pigtail B | FC/APC | Single Stage | SM |
| OSTOS027 | CWDM DFB | 1470nm | 2GHz | 2-3mW | Pigtail D | SC/APC | Single Stage | SM |
| OSTOS028 | CWDM DFB | 1490nm | 2GHz | 2-3mW | Pigtail D | SC/APC | Single Stage | SM |
| Part No. | Data Rate | Wavelength | Package series | Fiber Type |
| OSROS001 | 155M | 1310/1550nm | Receptacle E | None |
| OSROS002 | 1.25G | 1310/1550nm | Receptacle B | None |
| OSROS003 | 2.5G | 1310/1550nm | Receptacle E | None |
| OSROS005 | 2.5G | 1310/1550nm | Receptacle E | None |
| OSROS006 | 3G | 1310/1550nm | Receptacle B | None |
| OSROS007 | 3G | 1310/1550nm | Receptacle B | None |
| OSROS008 | 3G | 1310/1550nm | Receptacle B | None |
| OSROS009 | 155M | 1310/1550nm | Pigtail A | SM |
| OSROS010 | 1.25G | 1310/1550nm | Pigtail B | MM |
| OSROS011 | 2.5G | 1310/1550nm | Pigtail D | SM |
| OSROS012 | 3G | 1310/1550nm | Pigtail B | SM |
| OSROS013 | 10G | 1310/1550nm | Pigtail B | SM |
| OSROS015 | 1.25G | 1310/1550nm | LC-ROSA | SM |
| OSROS016 | 2.5G | 1310/1550nm | LC-ROSA | SM |
| OSROS017 | 10G | 1310/1550nm | LC-ROSA | SM |
| OSROS018 | 622M | 1310/1550nm | SC-ROSA5 | SM |
| OSROS019 | 2.5G | 1310/1550nm | SC-ROSA5 | SM |
| OSROS020 | 155M | 1310/1550nm | SC-ROSA5 | SM |
| OSROS021 | 1.25G | 1310/1550nm | SC-ROSA5 | SM |
| Part No. | Wavelength | Data Rate | Connector | Fiber Type |
| OSCAT001 | 1100〜1610nm | 2GHz | FC/APC | SM |
| OSCAT002 | 1100〜1610nm | 2GHz | SC/APC | SM |
| OSCAT003 | 1100〜1650nm | 3.2GHz | SC/APC | SM |
| OSCAT005 | 1100〜1610nm | 3.2GHz | FC/APC | SM |
| OSCAT006 | 1100〜1650nm | 2GHz | SC | None |
| OSCAT007 | 1100〜1650nm | 2GHz | FC-1 | None |
| OSCAT008 | 1100〜1650nm | 2.7GHz | FC-1 | None |
| OSCAT009 | 1100〜1610nm | 3.2GHz | SC | None |
| Part No. | Package series | Laser type | Wave Length | Data Rate | Connector | Isolation | Fiber Type |
| Launch | Receive | Tx | Rx |
| OSBOS001 | Receptacle | DFB | 1490nm | 1310nm | 1.25G | 1.25G | LC | None | None |
| OSBOS002 | Receptacle | FP | 1550nm | 1310nm | 1.25G | 155M | ST | None | None |
| OSBOS003 | Receptacle | FP | 1550nm | 1310nm | 1.25G | 1.25G | ST | None | None |
| OSBOS005 | pigtail | DFB | 1310nm | 1490nm | 2.5G | 2.5G | SC/APC | Single Stage | SM |
| OSBOS006 | pigtail | FP | 1310nm | 1490nm | 1.25G | 1.25G | SC/PC | None | SM |
| OSBOS007 | pigtail | FP | 1310nm | 1550nm | 2.5G | 1.25G | SC/APC | None | SM |
| OSBOS008 | pigtail | FP | 1310nm | 1550nm | 2.5G | 1.25G | SC/APC | None | SM |
| OSBOS009 | Receptacle | FP | 1310nm | 1550nm | 2.5G | 1.25G | SC | None | None |
| OSBOS010 | Receptacle | FP | 1550nm | 1310nm | 1.25G | 1.25G | SC | None | None |
| OSBOS011 | Receptacle | FP | 1310nm | 1550nm | 2.5G | 155M | SC | None | None |
| OSBOS012 | pigtail | CWDM | 1330nm | 1270nm | 10G | 10G | SC/PC | Single Stage | SM |
| OSBOS013 | pigtail | CWDM | 1270nm | 1330nm | 10G | 10G | SC/PC | Single Stage | SM |

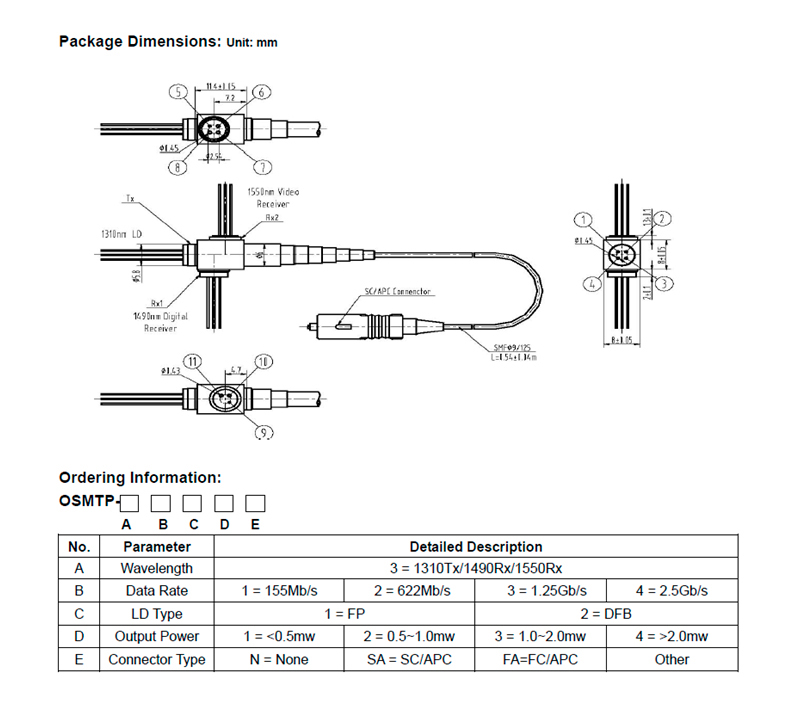

Triplexer Optical Module-1310nm Tx / 1490nm Digital Rx /1550nm Analog Rx
| 1.55um MQW-DFB Laser Diode for 155Mbps~2.5Gbps transmitting and 1.1~1.61um detector for less than 3.2Gbps receiving |
| 1.31um MQW-FP Laser Diode for 155Mbps~2.5Gbps transmitting and 1.1~1.61um detector for less than 3.2Gbps receiving |
| Part Number | Peak Wavelength(nm) | Typical Power | Package | Spectral Width (nm) |
| OSPDM001 | 630-1650 | 25dBm | Receptacle/adapter | NA |
| OSPDM002 | 800-1650 | 0 | Coaxial | 2GHz, 2.5GHz, 3GHz |
| OSPDM003 | 800-1650 | 10mW | Receptacle | NA |
| OSPDM005 | 1000-1650 | 0 | TO-18 | 2 GHz |
| OSPDM006 | 1000-1650 | 0 | G | 12 GHz |
| OSPDM007 | 1270-1580 | 0 | Mini DIL | 0.6 GHz |
| The detector includes a 5 pin APD plus AGC Pre-amplifier, supports 3Gbps long distance fiber |
| The detector includes a 5 pin APD plus AGC Pre-amplifier, supports 3Gbps long distance fiber communication application |
| The detector includes a 5 pin APD plus AGC Pre-amplifier, supports 2.5Gbps long distance fiber communication application |
| The detector includes a 5 pin APD plus AGC Pre-amplifier, supports 2Gbps long distance fiber communication application |
| Speed/Module |
| 155Mbps | Tx Port |
| Rx Port |
| 1.25Gbps (622Mbps) | Tx Port |
| Rx Port |
| 2.5Gbps | Tx Port |
| Rx Port |
| 4.25Gbps | Tx Port |
| Rx Port |
| 10Gbps (6~8Gbps) | Tx Port |
| Rx Port |
| Device | Classification | Wavelength |
| Laser | LED | 560~940nm |
| VCSEL | 850nm |
| FP/DFB | 1310nm |
| 1490nm |
| 1550nm |
| Photodiode | silicon PD | 650nm |
| GaAs PD | 850nm |
| InGaAs PD | 1260~1620nm |
| >1620nm |
| InGaAs APD | 1260~1620nm |
詳細は、お手数ですがお問い合わせフォームにお願いします。
